| BASIC INFORMATION | ||
| Power Supply | V,Hz,Ph | 220-240V,1Ph,50Hz |
| Cooling | ||
| Capacity | Btu/h | 36000 |
| Input | W | 3900 |
| Rated Current | A | 18.5 |
| EER | W/W | 3 |
| Heating | ||
| Capacity | Btu/h | 39000 |
| Input | W | 3500 |
| Rated Current | A | 17 |
| COP | W/W | 3 |
| Max. Input Consumption | W | 4250 |
| Max. Current | A | 20.5 |
| Compressor | ||
| Model | ZP42KUE-PFZ-50E | |
| Type | SCROLL | |
| Brand | EMERSON | |
| Capacity | Btu/h | 34802 |
| Input | W | 3450 |
| Rated Current (RLA) | A | 16.7 |
| Locked rotor Amp (RLA) | A | 97 |
| Thermal Protector Position | INTERNAL | |
| Capacitor | uF | 60.0 |
| Refrigerant oil | ml | 3MA F POE/1242 |
| Specifications | ||
| Refrigerant Type | Kg | R410A/2.5 |
| Design Pressure | MPa | 4.2/1.0 |
| Drainage Water Pipe Dia. | mm | ODΦ25 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | Φ9.52/Φ19(3/8″/3/4″) |
| Max. Refrigerant Pipe Length | m | 30 |
| Max. Difference In Level | m | 20 |
| Controller | Wired Control | |
| Operation Temperature | ℃ | 17-30 |
| Room Temperature | ||
| Indoor(Cooling/ Heating) | ℃ | 17~32/0～30 |
| Ambient Temperature | ||
| Outdoor(Cooling/ Heating) | ℃ | 18～43/-7～24 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | YKS-190-6-21L | |
| Qty | 1 | |
| Input | W | 293.0 |
| Capacitor | uF | 10UF/450V |
| Speed | r/min | 850 |
| Outdoor Coil | ||
| Number Of Rows | 1.6 | |
| Tube pitch(a)x row pitch(b) | mm | 25.4×22 |
| Fin Spacing | mm | 1.5 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Ф9.52,innergroove tube |
| Coil length x height x width | mm | 1005x762x22+580x762x22 |
| Number Of Circuits | 4 | |
| Outdoor Noise Level (Sound Pressure) | dB(A) | 63.4 |
| Throttle Type | Throttle Valve | |
| Outdoor Unit | ||
| Dimension(W*D*H) | mm | 946x410x810 |
| Packing (W*D*H) | mm | 1090x500x875 |
| Net Weight | Kg | 79.5 |
| Gross Weight | Kg | 85.3 |
| Container Loading 20′ feet | Unit | 44 |
| Container Loading 40′ feet | Unit | 96 |
| Container Loading 40′ feet High | Unit | 144 |

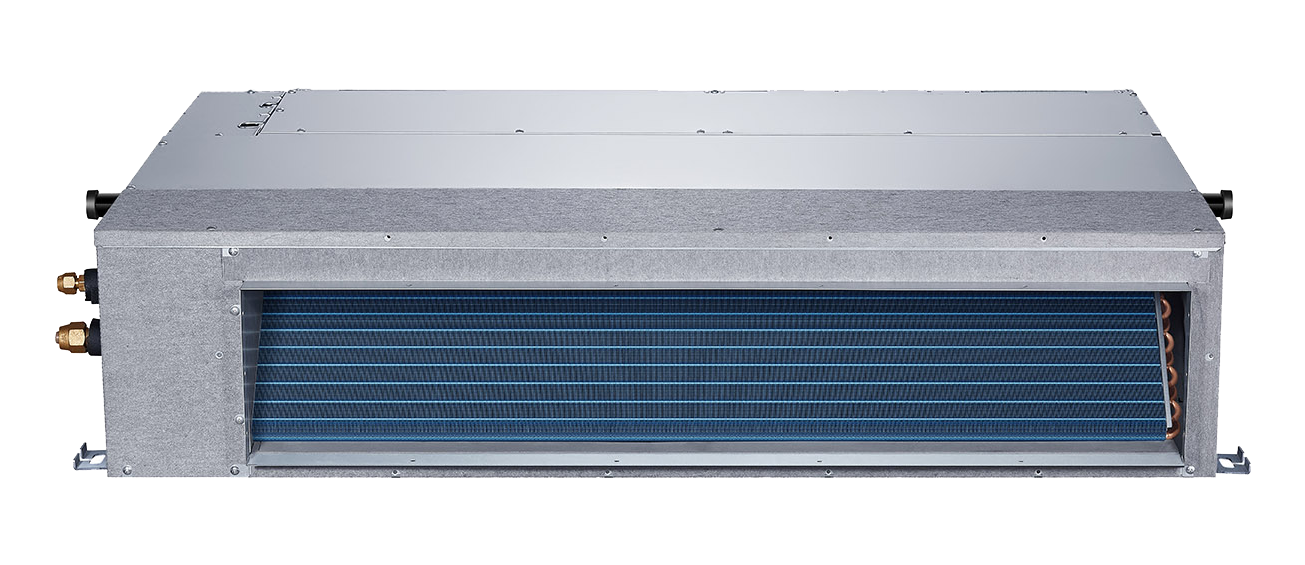

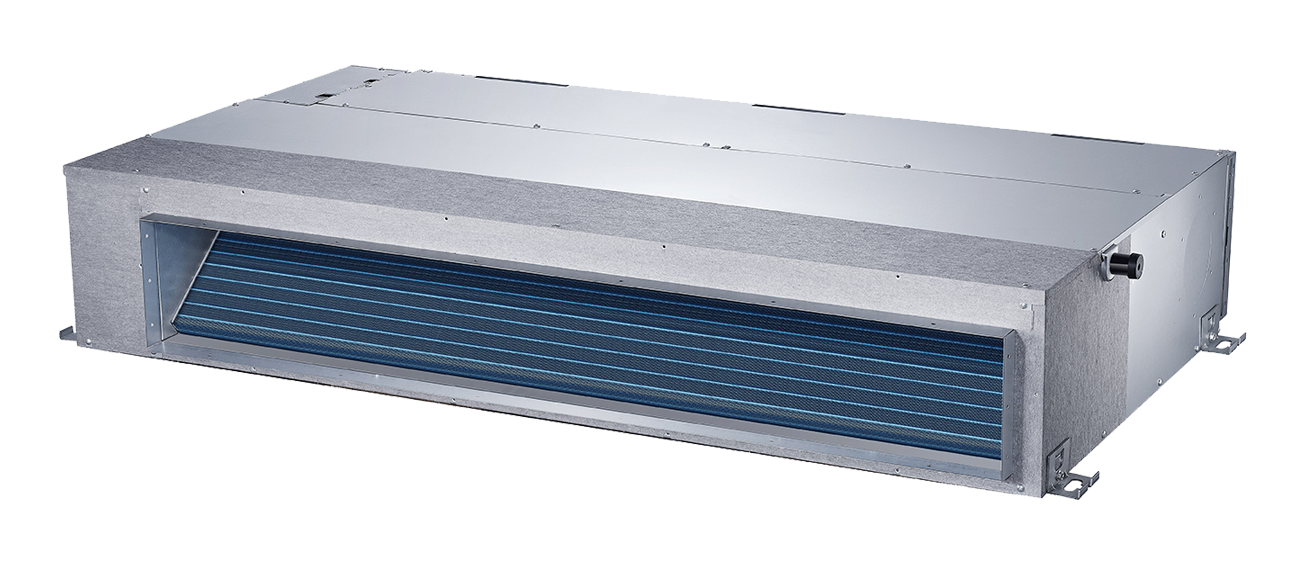

| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | YKSS-115-4-21 | |
| Qty | 1 | |
| Input | W | 238/198/167 |
| Capacitor | uF | 5 |
| Speed(Hi/Mi/Lo) | r/min | 860/830/730 |
| Indoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7.innergroove tube |
| Coil length x height x width | mm | 915x294x40.11 |
| Number Of Circuits | 7 | |
| Indoor air flow (Hi/Med/Lo) | m3/h | 1836/1383/1160 |
| ESP | ||
| Rated | Pa | 37 |
| Range | Pa | 0-100 |
| Indoor Noise Level (Hi/Med/Lo) | dB(A) | 48.8/43/39.3 |
| Indoor Unit | ||
| Dimension(W*D*H) | mm | 1100×774×249 |
| Packing (W*D*H) | mm | 1305×805×805 |
| Net Weight | Kg | 32.2 |
| Gross Weight | Kg | 39.4 |
| Container Loading 20′ feet | Unit | 77 |
| Container Loading 40′ feet | Unit | 161 |
| Container Loading 40′ feet High | Unit | 184 |
