| BASIC INFORMATION | ||
| Power Supply | V,Hz,Ph | 380~415V, 3Ph, 50Hz |
| Cooling | ||
| Capacity | Btu/h | 48000 |
| Input | W | 4670 |
| Rated Current | A | 7.5 |
| EER | W/W | 3.01 |
| Heating | ||
| Capacity | Btu/h | 52000 |
| Input | W | 4420 |
| Rated Current | A | 7.1 |
| COP | W/W | 3.45 |
| Max. Input Consumption | W | 6300 |
| Max. Current | A | 11 |
| Compressor | ||
| Model | C-SBN373H8D | |
| Type | SCROLL | |
| Brand | Panasonic | |
| Capacity | Btu/h | 48109 |
| Input | W | 4750 |
| Rated Current (RLA) | A | 8.22 |
| Locked rotor Amp (RLA) | A | 66 |
| Thermal Protector Position | INTERNAL | |
| Capacitor | uF | — |
| Refrigerant oil | ml | FV68S/1700 |
| Specifications | ||
| Refrigerant Type | Kg | R410A/3.25 |
| Design Pressure | MPa | 4.2/1.5 |
| Drainage Water Pipe Dia. | mm | ODΦ25 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | Φ9.52/Φ19(3/8″/3/4″) |
| Max. Refrigerant Pipe Length | m | 50 |
| Max. Difference In Level | m | 30 |
| Controller | Wired Control | |
| Operation Temperature | ℃ | 17-30 |
| Room Temperature | ||
| Indoor(Cooling/ Heating) | ℃ | 17~32/0～30 |
| Ambient Temperature | ||
| Outdoor(Cooling/ Heating) | ℃ | 18～43/-7～24 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | YKT-65-6-34L | |
| Qty | 2 | |
| Input | W | 162 |
| Capacitor | uF | 3.5UF/450V |
| Speed | r/min | 765 |
| Outdoor Coil | ||
| Number Of Rows | 2 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Ф7,innergroove tube |
| Coil length x height x width | mm | 840x1113x26.74 |
| Number Of Circuits | 8 | |
| Outdoor Noise Level (Sound Pressure) | dB(A) | 63 |
| Throttle Type | Capillary | |
| Outdoor Unit | ||
| Dimension(W*D*H) | mm | 900x350x1170 |
| Packing (W*D*H) | mm | 1032x443x1307 |
| Net Weight | Kg | 93.2 |
| Gross Weight | Kg | 105 |
| Container Loading 20′ feet | Unit | 27 |
| Container Loading 40′ feet | Unit | 57 |
| Container Loading 40′ feet High | Unit | 108 |

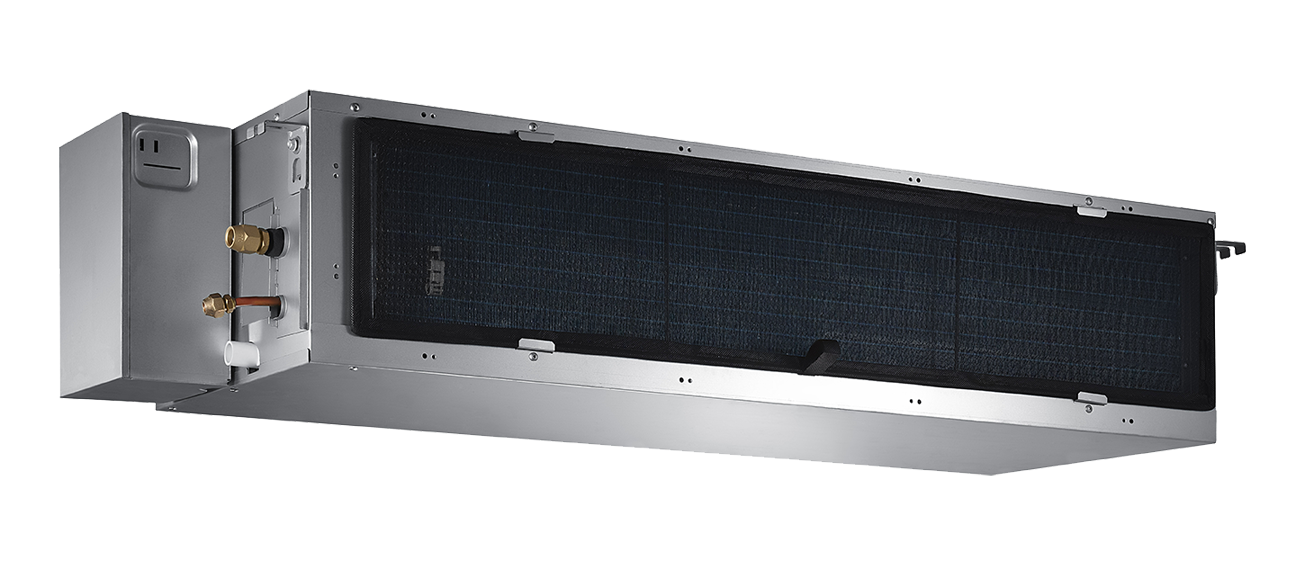

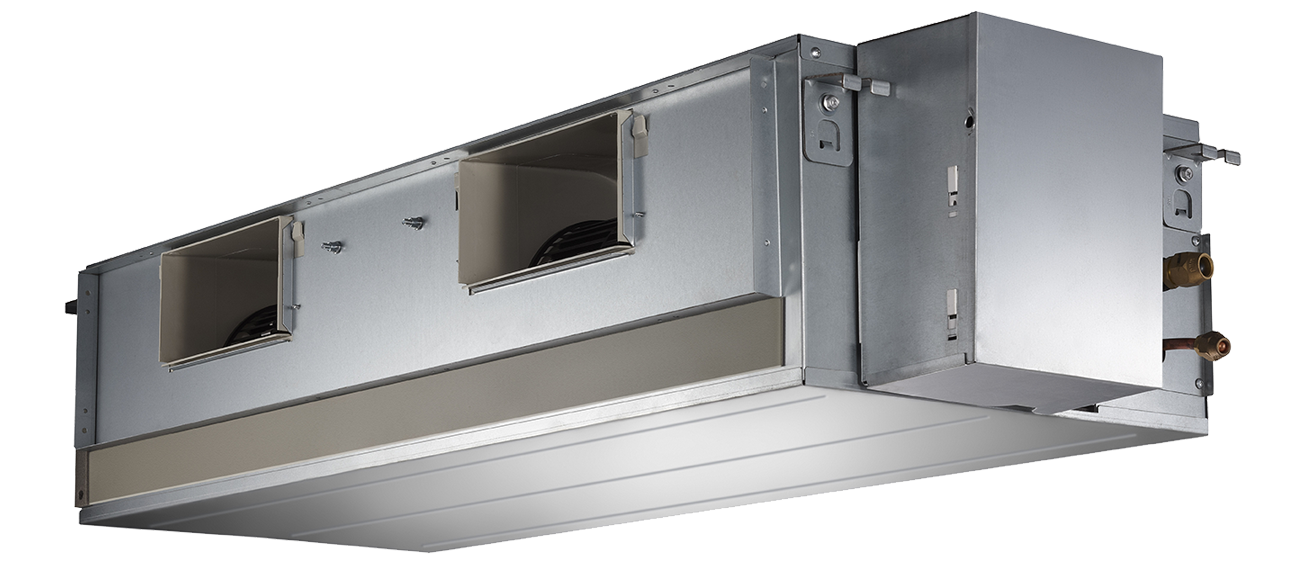

| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | YKSS-250-4-5 | |
| Qty | 1 | |
| Input | W | 480/420/360 |
| Capacitor | uF | 10 |
| Speed(Hi/Mi/Lo) | r/min | 750/705/655 |
| Indoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.3 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7.innergroove tube |
| Coil length x height x width | mm | 1055x357x40.11 |
| Number Of Circuits | 8 | |
| Indoor air flow (Hi/Med/Lo) | m3/h | 2810/2555/2270 |
| ESP | ||
| Rated | Pa | 50 |
| Range | Pa | 0-200 |
| Indoor Noise Level (Hi/Med/Lo) | dB(A) | 51/49/46 |
| Indoor Unit | ||
| Dimension(W*D*H) | mm | 1200x625x380 |
| Packing (W*D*H) | mm | 1485×675×450 |
| Net Weight | Kg | 46 |
| Gross Weight | Kg | 52.3 |
| Container Loading 20′ feet | Unit | 59 |
| Container Loading 40′ feet | Unit | 124 |
| Container Loading 40′ feet High | Unit | 125 |
