Low-power, low-noise, good speed performance as BLDC motors, simple structure as AC motor, no commutation spark, reliable operation and easy maintenance advantages.
Colors
Creative “Water Cube” drum effectively helps “massage” clothes, soak fabrics, completely overcome stain problems, and clean fabric corners. No more worries in facing stubborn stains, enjoying laundry. 2196 holes, each with diameter of 2.4 mm, the uniquely designed drum creates the perfect environment for gentle but effective washing of clothes.
Washing wool is easy. Wool is naturally stain resistant, odour resistant and also crease resistant, so actually requires less washing. This means that caring for wool is both easy and gentle on the planet. But when it is time to wash wool clothes, you can wash them in an Evvoli washing machine very easily.
Lifting rib has up to 138 sprinkling holes, which produces strong and gentle penetrating flows with constant change of the intelligently-controlled washing speed. Super Wings & Big S-shape designed surface, shatters all stubborn stains.
Water Cube Drum
Creative “Water Cube” drum effectively helps “massage” clothes, soak fabrics, completely overcome stain problems, and clean fabric corners. No more worries in facing stubborn stains, enjoying laundry. 2196 holes, each with diameter of 2.4 mm, the uniquely designed drum creates the perfect environment for gentle but effective washing of clothes.
| BASIC INFORMATION | ||
| Color | White/Silver | |
| Rated Power Supply | V | 220-240 |
| Rated Frequency | Hz | 50 |
| Rated Washing Capacity | kg | 12 |
| Rated Spinning Capacity | Kg | 12 |
| Rated Power | W | 2000 |
| Rated Current | A | 10 |
| Power consumption left-on mode | W | 1.0 |
| Power consumption off-mode | W | 0.5 |
| Max. Spin Speed | RPM | 1400 |
| Standard Water Pressure | Mpa | 0.05～1 |
| Display Type | LED | |
| Door Lock | Electromagnetic Lock | |
| Motor | BLDC Motor | |
| Power Cord Length | mm | 1.5 M |
| Water Inlet Hose Length | mm | 1.0 M |
| Water Outlet Hose Length | mm | 1.6 M |
| ENERGY RATING | ||
| Energy Efficiency Class | A+++ – 30% | |
| Washing Performance Class | A | |
| Spin-drying Efficiency Class | B | |
| Wash Ratio | 1.03 | |
| Moisture Ratio | 53% | |
| Annual Energy Consumption (AEC) | 158 kW·h/annum | |
| Energy Consumption (Cotton 60ºC Full Load) | 0.70 kW·h/cycle | |
| Energy Consumption (Cotton 60ºC Partial Load) | 0.70 kW·h/cycle | |
| Energy Consumption (Cotton 40ºC Partial Load) | 0.69 kW·h/cycle | |
| Weighted Annual Water Consumption (AWC) | 11880 L/annum | |
| Water Consumption (Cotton 60ºC Full Load) | 57 L/cycle | |
| Water Consumption (Cotton 60ºC Partial Load) | 51 L/cycle | |
| Water Consumption (Cotton 40ºC Partial Load) | 51 L/cycle | |
| Average Program Time (Cotton 60ºC Full Load) | 290 min | |
| Average Program Time (Cotton 60ºC Partial Load) | 288 min | |
| Average Program Time (Cotton 40ºC Partial Load) | 285 min | |
| Airborne Washing Acoustical Noise Emissions | 57 dB | |
| Airborne Spinning Acoustical Noise Emissions | 79 dB | |
| PROGRAMS | 14 COURSE | |

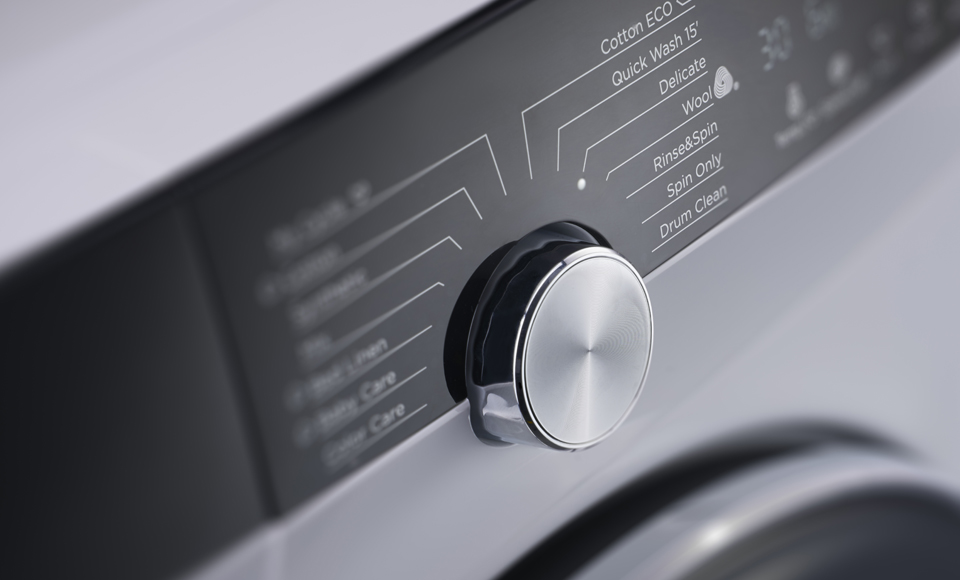

| Knob Selection: | ||
| Cotton ECO | Yes | |
| Quick wash 15′ | Yes | |
| Delicate | Yes | |
| Wool | Yes | |
| Rinse & Spin | Yes | |
| Spin Only | Yes | |
| Drum Clean | Yes | |
| Cotton | Yes | |
| Synthetic | Yes | |
| Mix | Yes | |
| Bed linen | Yes | |
| Baby Care | Yes | |
| Color Care | Yes | |
| My Cycle | Yes | |
| Button Function: | ||
| Delay | Yes (24 Hours) | |
| Temp | Yes | |
| Spin | Yes | |
| Super Steam | Yes | |
| Soil Level | Less-Standard-Extra | |
| Speed Wash | Yes | |
| Extra Rinse | Yes | |
| Prewash | Yes | |
| Functions: | ||
| Mute-Washing | Yes | |
| Memory (Press 3 Seconds) | Yes | |
| Child Lock (Combined) | Yes | |
| Spin Speed Selection | 0/400/600/800/1000/1200/1400 | |
| Temperature Selection | Cold-20º-30º-40º-60º-90℃ | |
| MECHANICAL KEY SPECIFICATIONS | ||
| Volume Of Inner Tub | L | 76.0 |
| Diameter Of Inner Tub | mm | 510 |
| Door Diameter | mm | 330 |
| Door Outer Frame Diameter | mm | 480 |
| Net Dimension (WxDxH) | mm | 595x565x850 |
| Gross Dimension (WxDxH) | mm | 675×720×875 |
| Net Weight | Kg | 73 |
| Gross Weight | Kg | 78 |
| Container Loading 20 ft | 48 | |
| Container Loading 40 ft Normal | 108 | |
| Container Loading 40 ft High | 152 | |
