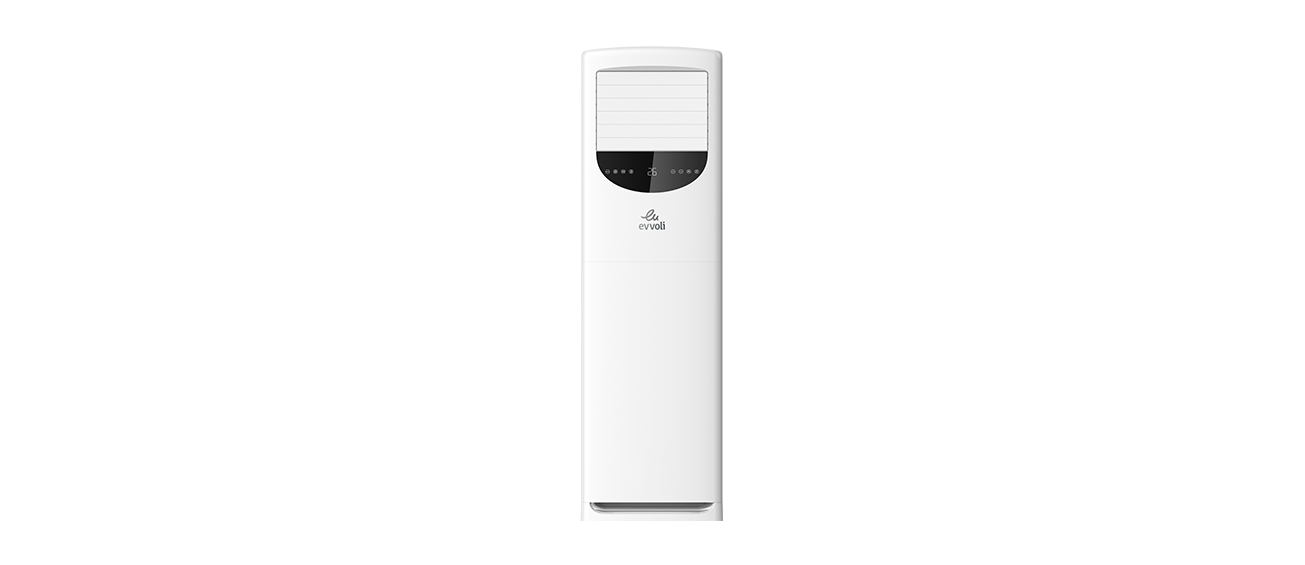

EVFS | 60K-J

60K-J
Powerful Cooling, Stable and Reliable Operation

Evvoli’s outstanding Floor-standing ACs are the perfect solution for places like cafes, boutiques, offices, lobbies, restaurants, showrooms etc. Their minimal look easily matches with any interior design. There is no need for complex installation processes; you can simply move it everywhere you desire. With the powerful air flow, you can use it anywhere and anytime for your cooling and heating purposes. Evvoli Floor-standing ACs make less sound and waste less energy. Invite your space to the round-the-year, corner-to-corner pleasant air with Evvoli’s mighty Floorstanding ACs.

Product Specifications

BASIC INFORMATION
Rated capacity
Cooling Btu 60000
Heating Btu 57500
Rated Running Current
Cooling A 7.6
Heating A 7.5
Max. Input Power W 7500
Max. Input Current A 13
EER Cooling W/W 2.82
COP Heating W/W 2.96
Refrigerant R410A
Refrigerant Charged g 3000
Max. Discharge Pressure Mpa 4.3
Max. Suction Pressure Mpa 1.15
Air Flow Volume m3/h 1900
Indoor unit Noise Power dB(A) 56
Outdoor unit Noise Power dB(A) 58
Indoor unit weight (Net) Kg 97
Outdoor unit weight (Net) Kg 110
Container Loading 40HC Units 42
CONNECTION
Stop Valve
Liquid Valve mm Dg8
Gas Valve mm Dg16
INDOOR UNIT
evaporator bend 1
evaporator row 2
evaporator pipe diameter mm 9.52
Indoor Fan Motor YDK138-8
Dimension
Net Dimension mm 580x1925x400
Packing Dimension mm 680x2060x520
OUTDOOR UNIT
Compressor Brand Highly
Compressor Model ATE498
Outdoor Fan Motor CW70C
Condenser Pipe Diameter mm 7
Condenser Row 2
Dimension
Net Dimension mm 1320x940x340
Packing Dimension mm 1070x1435x450
