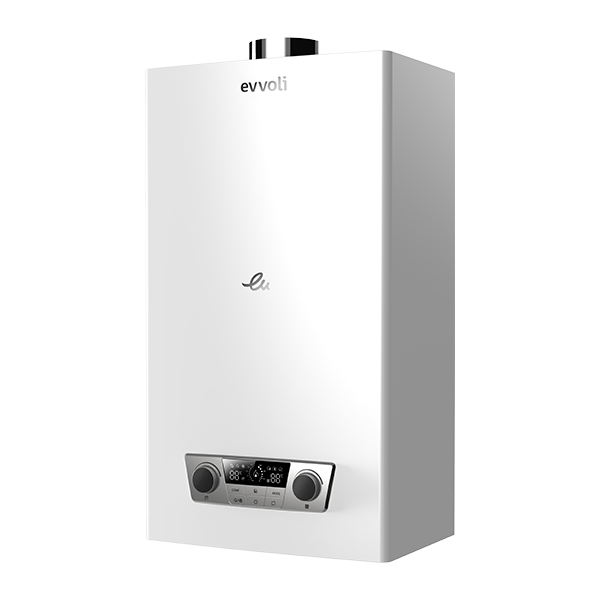

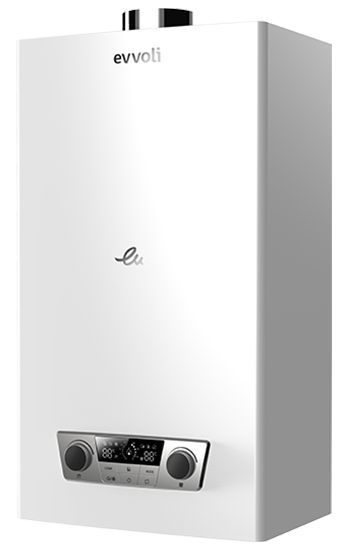

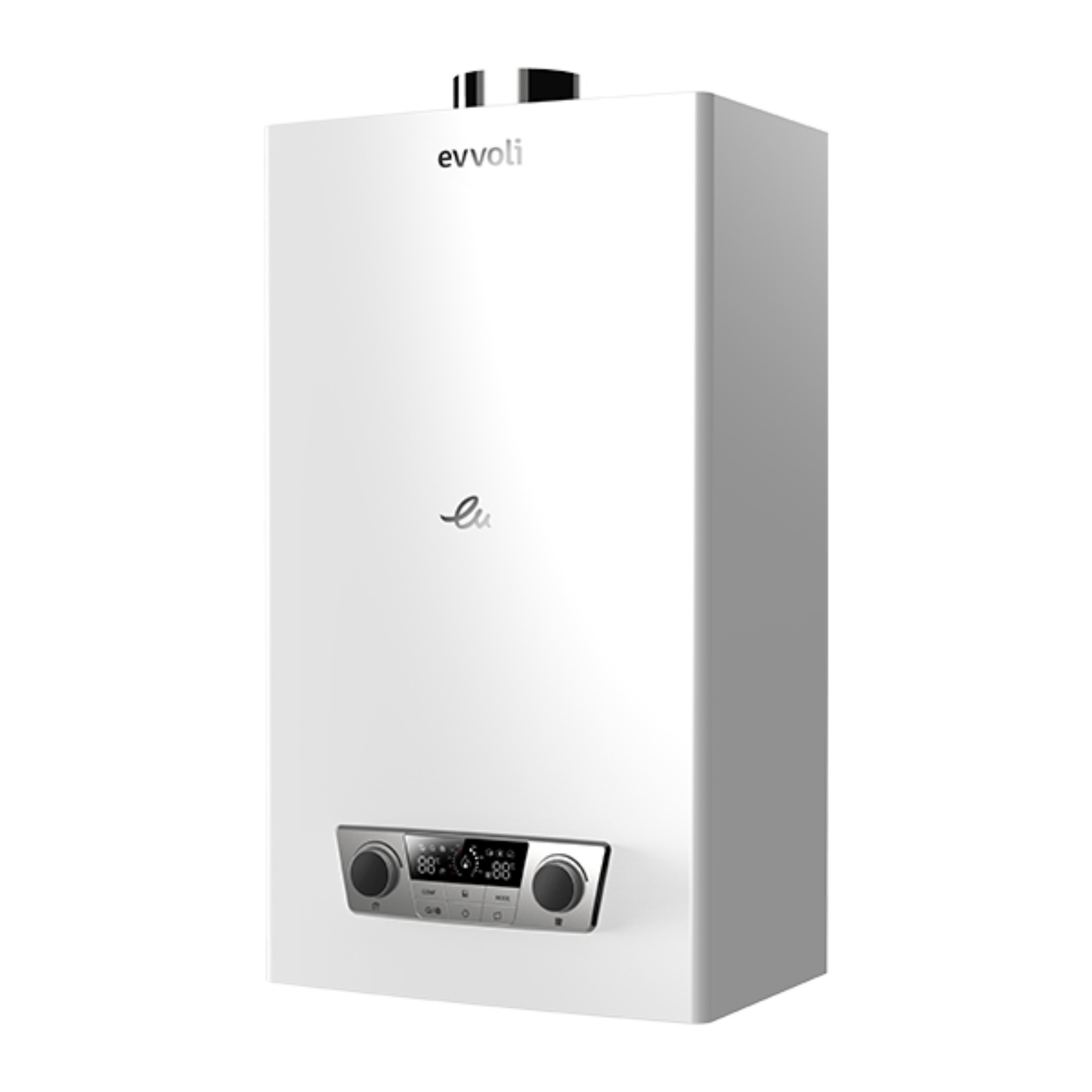

Evvoli Gas Boiler is very cost-effective and energy-efficient. Water gets heated instantly rather than being heated and then stored in a cylinder. An added benefit is that hot water is delivered at mains pressure, which means that you could get a powerful shower without the need for a separate pump.
| General Features | ||
| Balance Exhaust Type | Yes | |
| Minimum Heating Input | 8.9 | |
| Rated Heating Output | 23.1 | |
| Minimum Heating Output | 8 | |
| Heating Temperature Regulation Range | 30-80 | |
| Floor Heating Temperature Regulation Range | 30-60 | |
| Applicable Water Pressure Of The Heating System | 0.04-0.3 | |
| Maximum Pressure Of The Heating System | 0.3 | |
| Capacity Of The Expansion Tank | 6 | |
| Pre-charge Pressure Of The Expansion Tank | 0.1 | |
| Temperature Regulation Of The Sanitary Hot Water | 35-60 | |
| Maximum Pressure Of The Sanitary Hot Water | 0.8 | |
| Minimum Pressure Of The Sanitary Hot Water | 0.02 | |
| △t=25K Nominal Hot Water Production Rate | 13.2 | |
| △t=30K Nominal Hot Water Production Rate | 11 | |
| Basic Information | ||
| Rated Voltage / Freq | 220V/50Hz | |
| Maximum Input Electric Power | 110 W | |
| Insulation Grade | Grade Ⅰ | |
| Waterproofing Grade | IPX4D | |
| Heating Water Outlet/Bacakwater Interface | G3/4 | |
| Sanitary Hot Water/Cold Water Interface | G1/2 | |
| Gas Interface | G3/4 | |
| Cold Inlet Water | G1/2 | |
| Hot Outlet Water | G1/2 | |
| Flue Pipe / Chimney Diameter | φ60/φ100 | |
| Efficiency | 89% | |
| Mechanical Key Specifications | ||
| Packing Dimension | mm | 835x503x322 |
| Net Dimension | mm | 700x420x240 |
| Net Weight | Kg | 30 |
| Gross Weight | Kg | 33 |
| Container Loading 20’feet | Units | 210 |
| Container Loading 40’feet | Units | 420 |
| Container Loading 40’HC | Units | 480 |
