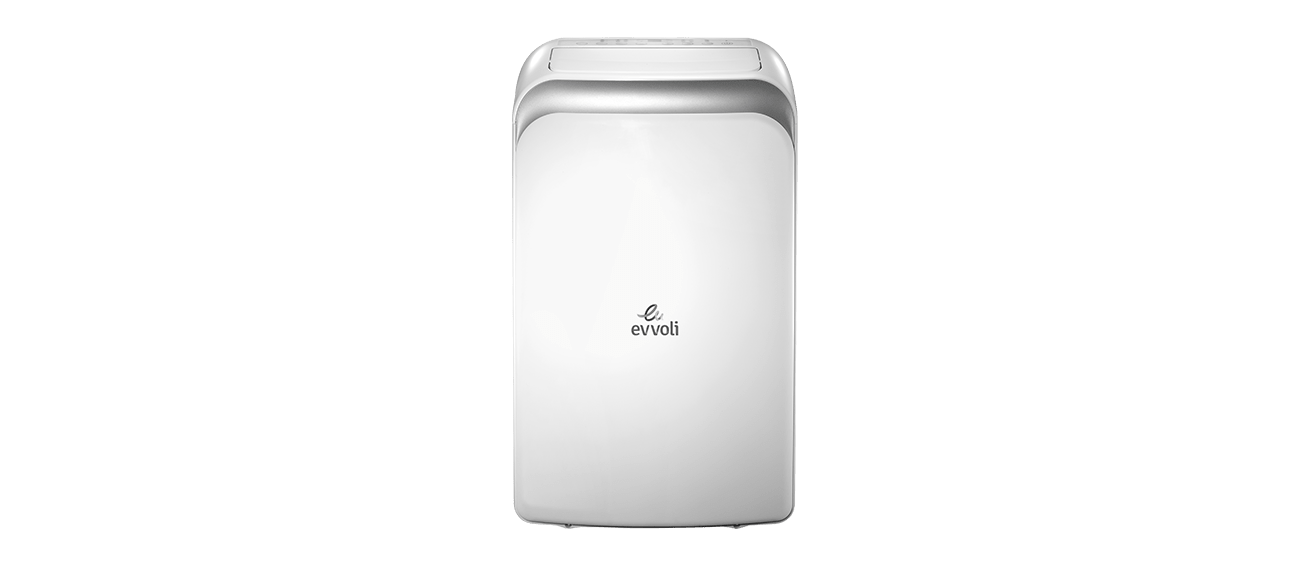

Introducing you the new generation of the portable ACs by the-Evvoli-evolved technology. The new portable conditioning system offers you cooling and heating in a limit-free manner. The Omni-directional Caster offers you a borderless experience. The R410A gas and the ionizer system help improve the lung and breathing function and allergies are a thing of the past.
| BASIC INFORMATION | ||
| Power Supply | V,Ph,Hz | 220-240V,1Ph,50Hz |
| Cooling | ||
| Capacity | Btu/h | 12000 |
| Input | W | 1350 |
| Current | A | 5.87 |
| EER | W/W | 2.6 |
| Heating | ||
| Capacity | Btu/h | 10000 |
| Input | W | 1130 |
| Current | A | 4.91 |
| COP | W/W | 2.60 |
| Moisture Removal | L/h | 1.2 |
| Rated Input Consumption | W | 1540 |
| Rated Current | A | 8 |
| Starting Current | A | 25 |
| Compressor | ||
| Model | ASM125V1VDZ | |
| Type | Rotary | |
| Brand | GMCC | |
| Capacity | Btu/h | 3590/3625 |
| Input | W | 845/895 |
| Rated Current (RLA) | A | 3.85/3.75 |
| Locked rotor Amp (RLA) | A | 25.0 |
| Thermal Protector | — | |
| Thermal Protector Position | INTERNAL | |
| Capacitor | uF | 35.0 |
| Refrigerant Oil | ml | ESTER OIL VG74/350 |
| Refrigerant | ||
| Refrigerant Type | R410A | |
| Charged Quantity | Kg | 0.43 |
| Design pressure | MPa | 1.5/4.2 |
| Plug Type | 1.5×3 / VDE | |
| Control Type | Remote Control | |
| Operation Temperature | ℃ | 17-35 |
| Application Area (Cooling Standard) | m2 | 16-23 |
| SPECIFICATIONS | ||
| Indoor Fan Motor | ||
| Model | YKT-18-6-209L-2 | |
| Input | W | 52.0 |
| Capacitor | uF | 1.5 |
| Speed(Hi/Mi/Lo) | r/min | 760/690/650 |
| Evaporator | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.2 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7.inner groove tube |
| Coil length x height x width | mm | 322x294x40.11 |
| Number Of Circuits | 2 | |
| Indoor side air flow (Hi/Mi/Lo) | m3/h | 425/380/360 |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 52.5/51.5/51.0 |
| Outdoor Fan Motor | ||
| Model | YKT-50-4-222L | |
| Input | W | 117 |
| Capacitor | uF | 3 |
| Speed | r/min | 1020/660 |
| Condenser | ||
| Number Of Rows | 4 | |
| Tube pitch(a)x row pitch(b) | mm | 14.5×12.56 |
| Fin Spacing | mm | 1.2 |
| Fin type (code) | UnHydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ5,innergroove tube |
| Coil length x height x width | mm | 265×50.24×319 |
| Number Of Circuits | 2 | |
| MECHANICAL KEY SPECIFICATION | ||
| Net Weight | Kg | 33.74 |
| Gross Weight | Kg | 37.46 |
| Dimension(WxDxH) | mm | 467x397x765 |
| Packing (WxDxH) | mm | 515x440x890 |
| Container Loading 20′ feet | Units | 114 |
| Container Loading 40′ feet | Units | 238 |
| Container Loading 40′ feet High | Units | 353 |
