| BASIC INFORMATION | ||
| Power Supply | V, Ph, Hz | 220-240V,1Ph,50Hz |
| Cooling | ||
| Capacity | Btu/h | 36000 |
| Input | W | 3287 |
| Rated Current | A | 15.0 |
| EER | W/W | 3.21 |
| Heating | ||
| Capacity | Btu/h | 37000 |
| Input | W | 3120 |
| Rated Current | A | 14.1 |
| COP | W/W | 3.48 |
| Max. Input Consumption | W | 3978 |
| Max. Current | A | 17.8 |
| Starting Current | A | 74 |
| Compressor | ||
| Model | ATQ390V1UMT | |
| Type | Rotary | |
| Brand | GMCC | |
| Capacity | Btu/h | 33990 |
| Input | W | 3272 |
| Rated Current (RLA) | A | 15.10 |
| Locked rotor Amp (RLA) | A | 74 |
| Thermal Protector | — | |
| Thermal Protector Position | INTERNAL | |
| Capacitor | uF | 70 |
| Refrigerant oil/oil Charge | ml | ESTEL OIL VG74/1100 |
| Specifications | ||
| Refrigerant Type | g | R410A/2650 |
| Design pressure | MPa | 4.2/1.5 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | 9.52/15.9 |
| Max. Refrigerant Pipe Length | m | 25 |
| Max. Difference In Level | m | 10 |
| Connection Wiring | 4×1.0 | |
| Plug Type | 3×4.0 | |
| Thermostat Type | Remote Control | |
| Operation Temperature | ℃ | 17-30 |
| Room Temperature | ||
| Indoor(Cooling/ Heating) | ℃ | 17～32/0～30 |
| Outdoor(Cooling/ Heating) | ℃ | 18～43/-7～24 |
| Application Area (Cooling Standard) | m2 | 45-66 |
| Container Loading 20′ feet | Units | 38 |
| Container Loading 40′ feet | Units | 78 |
| Container Loading 40′ feet High | Units | 98 |

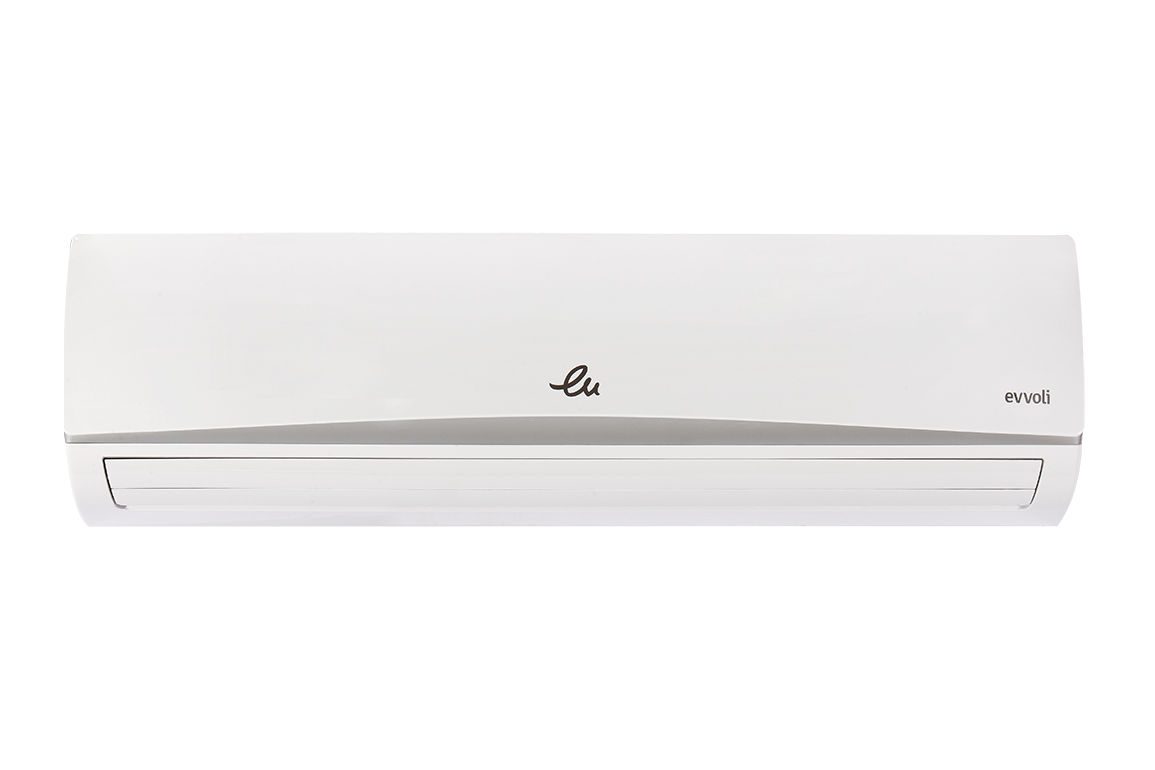

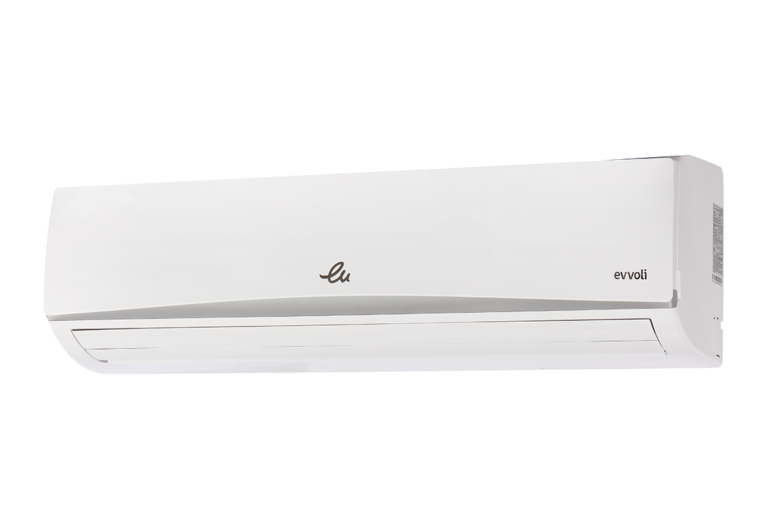

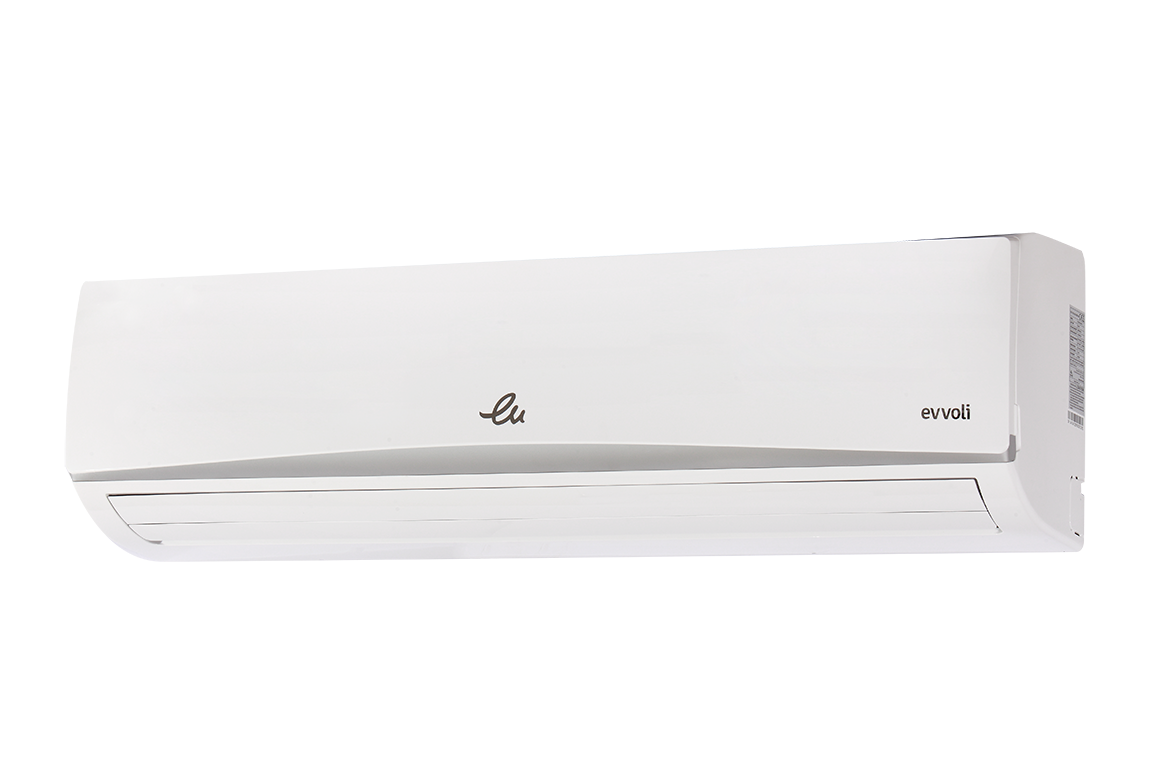

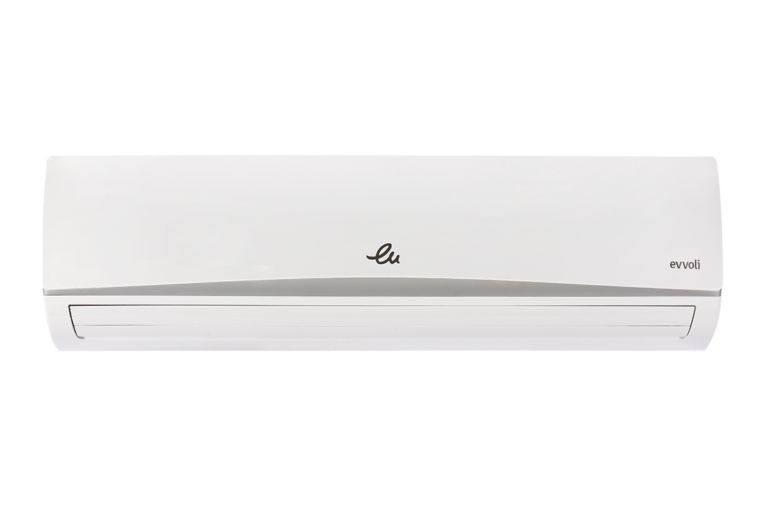

| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | YKFG-60-4-2 | |
| Input | W | 98.0 |
| Capacitor | uF | 3.5 |
| Speed(Hi/Mi/Lo) | r/min | 1210/1080/900 |
| Indoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.3 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7.innergroove tube |
| Coil length x height x width | mm | 965x378x40.11 |
| Number Of Circuits | 7 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1370/1200/980 |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 50/46/41 |
| Indoor Unit | ||
| Dimension(W*D*H) | mm | 1260x283x362 |
| Packing (W*D*H) | mm | 1340x380x450 |
| Net Weight | Kg | 21.8 |
| Gross Weight | Kg | 27.6 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | YKT-60-6-40 | |
| Input | W | 133 |
| Capacitor | uF | 5 |
| Speed | r/min | 870 |
| Outdoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7,innergroove tube |
| Coil length x height x width | mm | 1000x756x40.11 |
| Number Of Circuits | 6 | |
| Outdoor noise level | dB(A) | 61 |
| Outdoor Unit | ||
| Dimension(W*D*H) | mm | 946×410×810 |
| Packing (W*D*H) | mm | 1090x500x875 |
| Net Weight | Kg | 70 |
| Gross Weight | Kg | 75 |
