| BASIC INFORMATION | ||
| Rated Capacity | ||
| Cooling | Btu | 24000(9200-27000) |
| Heating | Btu | 25000(8000-30000) |
| Rated Running Current | ||
| Cooling | A | 10.2(0.9-13.2) |
| Heating | A | 10.7(1.2-11.6) |
| Max. Input Power | W | 3600 |
| Max. Input Current | A | 16 |
| EER Cooling | W/W | 2.83 |
| COP Heating | W/W | 2.86 |
| Power Supply Source | V/Ph/Hz | 220~240V/50Hz |
| Refrigerant | R410A | |
| Refrigerant Charged | g | 1600 |
| Max. Discharge Pressure | Mpa | 4.15 |
| Max. Suction Pressure | Mpa | 1.15 |
| Air Flow Volume | m3/h | 1250 |
| Indoor Unit Noise Power | dB(A) | 46 |
| Outdoor Unit Noise Power | dB(A) | 57 |
| Indoor Unit Weight(Net) | Kg | 16 |
| Outdoor Unit Weight(Net) | Kg | 48 |
| Container Loading 40HC | Units | 138 |

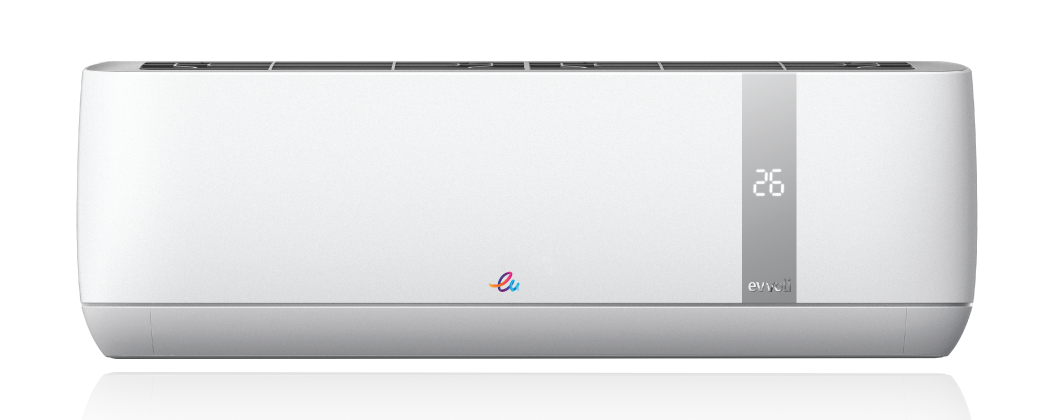

| INDOOR UNIT | ||
| Evaporator | ||
| Bend | 3 | |
| Evaporator Row | 2 | |
| Evaporator Pipe Diameter | mm | 7×0.24 |
| Indoor Fan Motor | YYK50-4 | |
| Dimension | ||
| Net Dimension | mm | 1132x330x232 |
| Packing Dimension | mm | 1205x400x317 |
| CONNECTION | ||
| Stop Valve | ||
| Liquid Valve | mm | Φ6.35 |
| Gas Valve | mm | Φ15.88 |

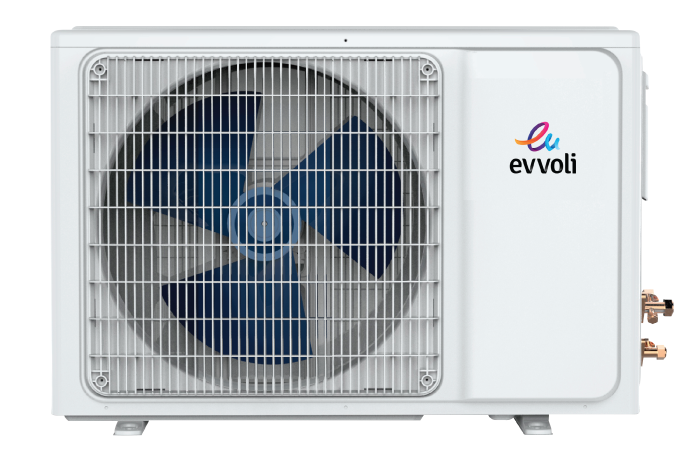

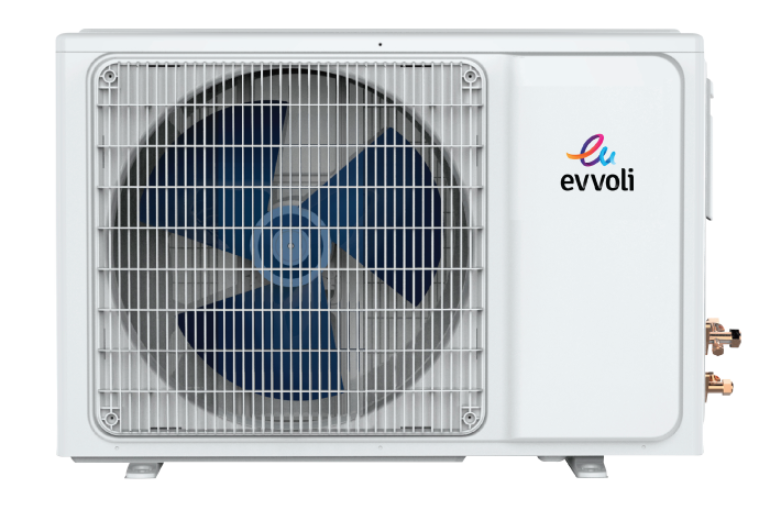

| OUTDOOR UNIT | ||
| Compressor Brand | HITACHI | |
| Compressor Model | ATD186 | |
| Outdoor Fan Motor | D-69-8 | |
| Condenser Pipe Diameter | mm | 9.52×0.27 |
| Condenser Row | 1 | |
| Dimension | ||
| Net Dimension | mm | 900×343×681 |
| Packing Dimension | mm | 1020×430×770 |
