| BASIC INFORMATION | ||
| Power Supply | V,Ph,Hz | 220-240V,1Ph,50Hz |
| Cooling | ||
| Capacity | Btu/h | 22700 |
| Capacity | W | 7072 |
| Input | W | 2060 |
| Rated Current | A | 9.3 |
| EER | W/W | 3.23 |
| Heating | ||
| Capacity | Btu/h | 23100 |
| Capacity | Btu/h | 7034 |
| Input | W | 1870 |
| Rated Current | A | 8.5 |
| COP | W/W | 3.62 |
| Max. Input Consumption | W | 2800 |
| Max. Current | A | 14 |
| Compressor | ||
| Model | ATF235D22UMT | |
| Type | Rotary | |
| Brand | GMCC | |
| Capacity | Btu/h | 24345 |
| Input | W | 1970 |
| Rated Current (RLA) | A | 6.95 |
| Refrigerant oil/oil Charge | ml | POE VG74/670 |
| Specifications | ||
| Refrigerant Type | g | R410A/1650 |
| Design pressure | MPa | 4.2/1.5 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | Φ9.52/Φ15.9(3/8″/5/8″) |
| Max. Refrigerant Pipe Length | m | 50 |
| Max. Difference In Level | m | 25 |
| Connection Wiring | 4×1.0 (Optional) | |
| Plug Type | — | |
| Thermostat Type | Remote Control | |
| Operation Temperature | ℃ | 17-30 |
| Room Temperature | ||
| Indoor(Cooling/ Heating) | ℃ | 17～32/0～30 |
| Outdoor(Cooling/ Heating) | ℃ | 0-50/-15-30 |
| Application Area (Cooling Standard) | m2 | 32-47 |
| Container Loading 20′ feet | Units | 66 |
| Container Loading 40′ feet | Units | 138 |
| Container Loading 40′ feet High | Units | 152 |

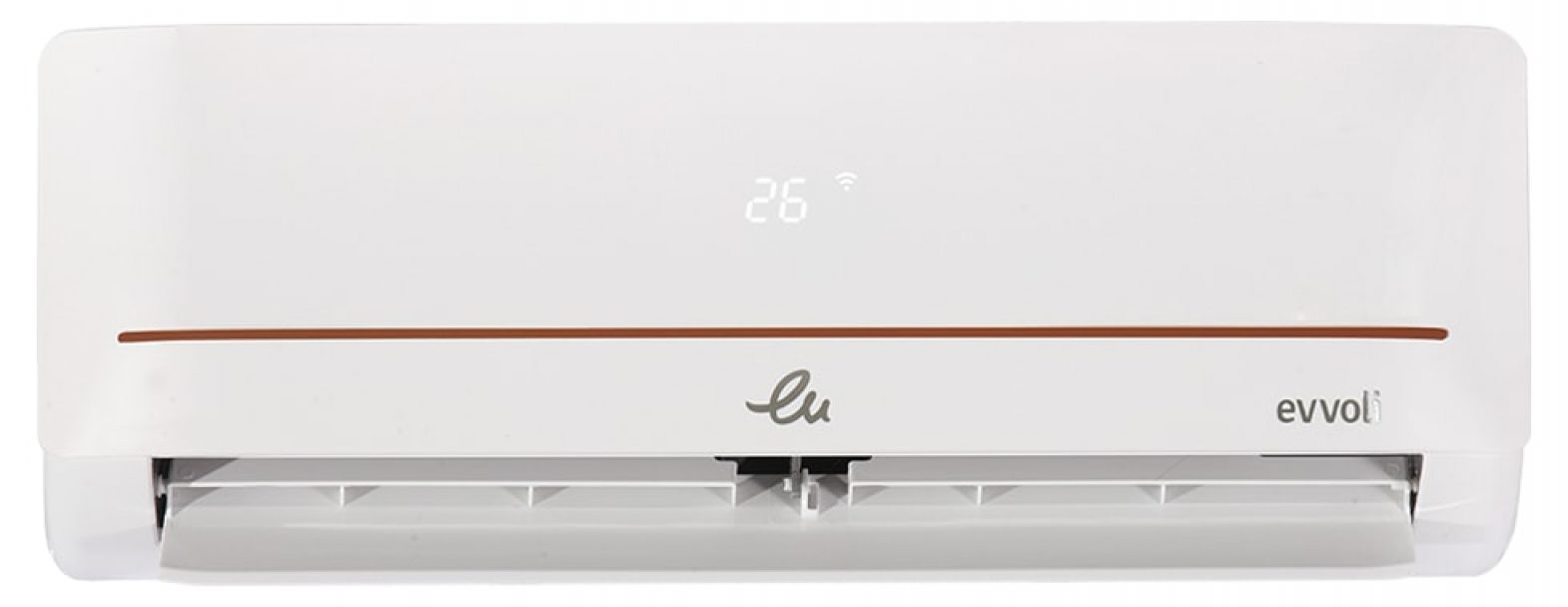

| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | YKFG-45-4-22 | |
| Input | W | 77 |
| Output | W | 45 |
| Capacitor | uF | 3.0 |
| Speed(Hi/Mi/Lo) | r/min | 1200/950/750 |
| Indoor Coil | ||
| Number Of Rows | 2 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.3 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7.innergroove tube |
| Coil length x height x width | mm | 820x336x26.74 |
| Number Of Circuits | 4 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1110/890/700 |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 50/44/33 |
| Indoor Unit | ||
| Dimension(W*D*H) | mm | 1080x226x335 |
| Packing (W*D*H) | mm | 1155x415x315 |
| Net Weight | Kg | 13.8 |
| Gross Weight | Kg | 17.3 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | ZKFN-50-8-2 | |
| Input | W | 115 |
| Output | W | 50 |
| Capacitor | uF | — |
| Speed | r/min | 850/700/450 |
| Outdoor Coil | ||
| Number Of Rows | 2 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and type | mm | Φ7,innergroove tube |
| Coil length x height x width | mm | 760x651x26.74 |
| Number Of Circuits | 6 | |
| Outdoor noise level | dB(A) | 59 |
| Outdoor Unit | ||
| Dimension(W*D*H) | mm | 845x363x702 |
| Packing (W*D*H) | mm | 965x395x765 |
| Net Weight | Kg | 45.6 |
| Gross Weight | Kg | 48.8 |
