| BASIC INFORMATION | ||
| Cooling | ||
| Capacity | Btu/h | 24600 |
| Input | W | 2953 |
| Rated Current | A | 13.23 |
| EER | W/W | 8.330 |
| Max. Input Consumption | W | 3500 |
| Max. Current | A | 17.5 |
| Starting Current | A | 72 |
| Compressor | ||
| Model | AW 5530B | |
| Type | RECIPROCATING | |
| Brand | KK | |
| Capacity | Btu/h | 25931 |
| Input | W | 2580 |
| Rated current(RLA) | A | 11.80 |
| Locked rotor Amp(LRA) | A | 72 |
| Thermal protector | 15HM1466 | |
| Thermal Protector Position | INTERNAL | |
| Capacitor | uF | 60 |
| Refrigerant Oil / Oil charge | ml | Polyolester Oil /1142 |
| Specifications | ||
| Refrigerant Type | g | R410A/2350 |
| Design Pressure | MPa | 4.8/2.3 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | Φ9.52/Φ19(3/8″/5/8″) |
| Max. Refrigerant Pipe Length | m | 25 |
| Max. Difference In Level | m | 10 |
| Connection Wiring | 1.0×4 | |
| Plug Type | 4.0×3/no-plug | |
| Thermostat Type | Remote Control | |
| Operation Temperature | ℃ | 17~30 |
| Room Temperature | ||
| Indoor(Cooling/ Heating) | ℃ | 17~32/– |
| Outdoor(Cooling/ Heating) | ℃ | 18~52/– |
| Application Area (Cooling Standard) | m2 | 40-59 |
| Container Loading 20′ feet | Unit | 30 |
| Container Loading 40′ feet | Unit | 67 |
| Container Loading 40′ feet High | Unit | 74 |
| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | ZKFP-58-8-1-5 | |
| Input | W | 81 |
| Output | W | 58 |
| Capacitor | uF | — |
| Speed(Hi/Mi/Lo) | r/min | 1400/1230/1080/980 |
| Indoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin spacing | mm | 1.3 |
| Fin type (code) | Hydrophilic Aluminium | |
| Tube outside dia.and Type | mm | Φ7,innergroove Tube |
| Coil length x height x width | mm | 965x378x40.11 |
| Number Of Circuits | 7 | |
| Indoor air flow (Turbo/Hi/Mi/Lo) | m3/h | 1650/1450/1240/1100 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | dB(A) | 53/50/46/42 |

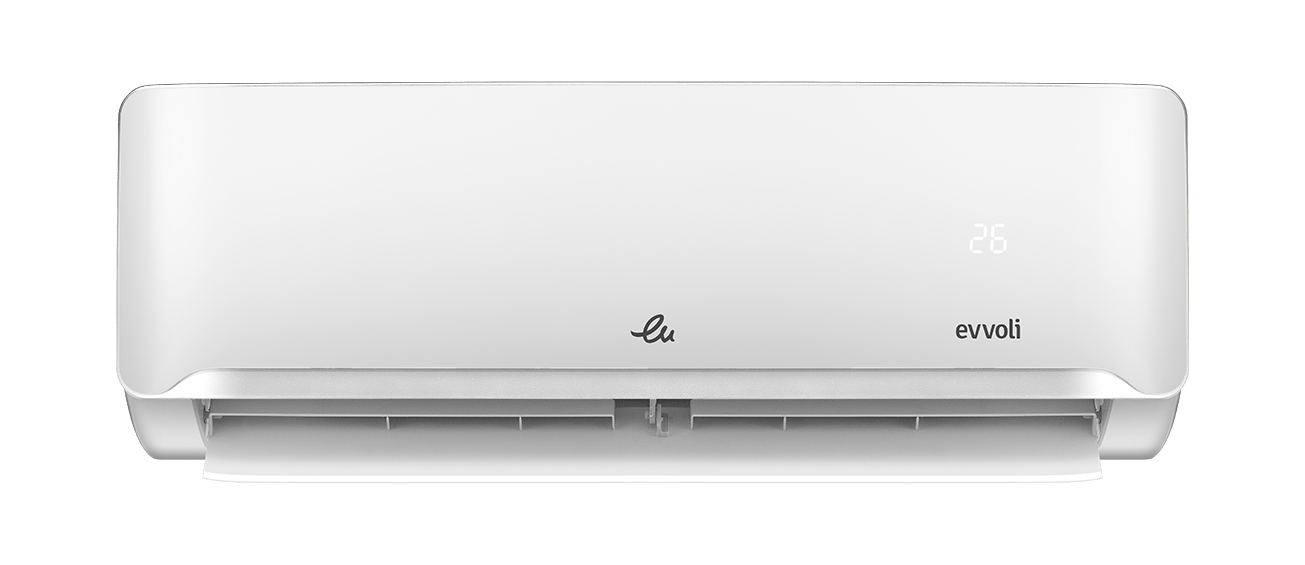

| Indoor Unit | ||
| Dimension(WxDxH) | mm | 1259x282x362 |
| Packing (WxDxH) | mm | 1340x380x450 |
| Net Weight | Kg | 19.8 |
| Gross Weight | Kg | 26 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | YKT-60-6-40-7 | |
| Input | W | 133 |
| Output | W | 60 |
| Capacitor | uF | 5 |
| Speed | r/min | 870 |
| Outdoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | UnHydrophilic Aluminium | |
| Tube outside dia.and type | mm | Ф7,innergroove tube |
| Coil length x height x width | mm | 1000x756x40.11 |
| Number Of Circuits | 6 | |
| Outdoor Noise Level | dB(A) | 58 |
| Outdoor Unit | ||
| Dimension(WxDxH) | mm | 946x410x810 |
| Packing (WxDxH) | mm | 1090x500x875 |
| Net Weight | Kg | 77.3 |
| Gross Weight | Kg | 86.2 |
