| BASIC INFORMATION | ||
| Cooling | ||
| Capacity | Btu/h | 24000 |
| Input | W | 2420 |
| Rated Current | A | 10.8 |
| EER | W/W | 2.91 |
| Max. Input Consumption | W | 4000 |
| Max. Current | A | 23 |
| Starting Current | A | 65.5 |
| Compressor | ||
| Model | PH400G2CS-4KTS1 | |
| Brand | GMCC | |
| Refrigerant Oil / Oil charge | ml | SUNISO 4GSD / NM56EP / Equivalent / 850 |
| Specifications | ||
| Refrigerant Type | g | R22/2050 |
| Design Pressure | MPa | 3.0/1.0 |
| Refrigerant Piping | ||
| Liquid Side/ Gas Side | mm(inch) | Φ9.52/Φ15.9(3/8″/5/8″) |
| Max. Refrigerant Pipe Length | m | 20 |
| Max. Difference In Level | m | 10 |
| Container Loading 20′ feet | Unit | 66 |
| Container Loading 40′ feet | Unit | 138 |
| Container Loading 40′ feet High | Unit | 152 |
| INDOOR UNIT | ||
| Indoor Fan Motor | ||
| Model | YKFG-45-4-22 | |
| Indoor Coil | ||
| Number Of Rows | 2 | |
| Tube pitch(a)x row pitch(b) | mm | Φ7,Inner groove tube |
| Coil length x height x width | mm | 820x336x26.74 |
| Number Of Circuits | 4 | |
| Indoor air flow (Turbo/Hi/Mi/Lo) | m3/h | 1050/1000/930/850 |
| Indoor Noise Level (Turbo/Hi/Mi/Lo) | dB(A) | 47.5/47/43/41 |

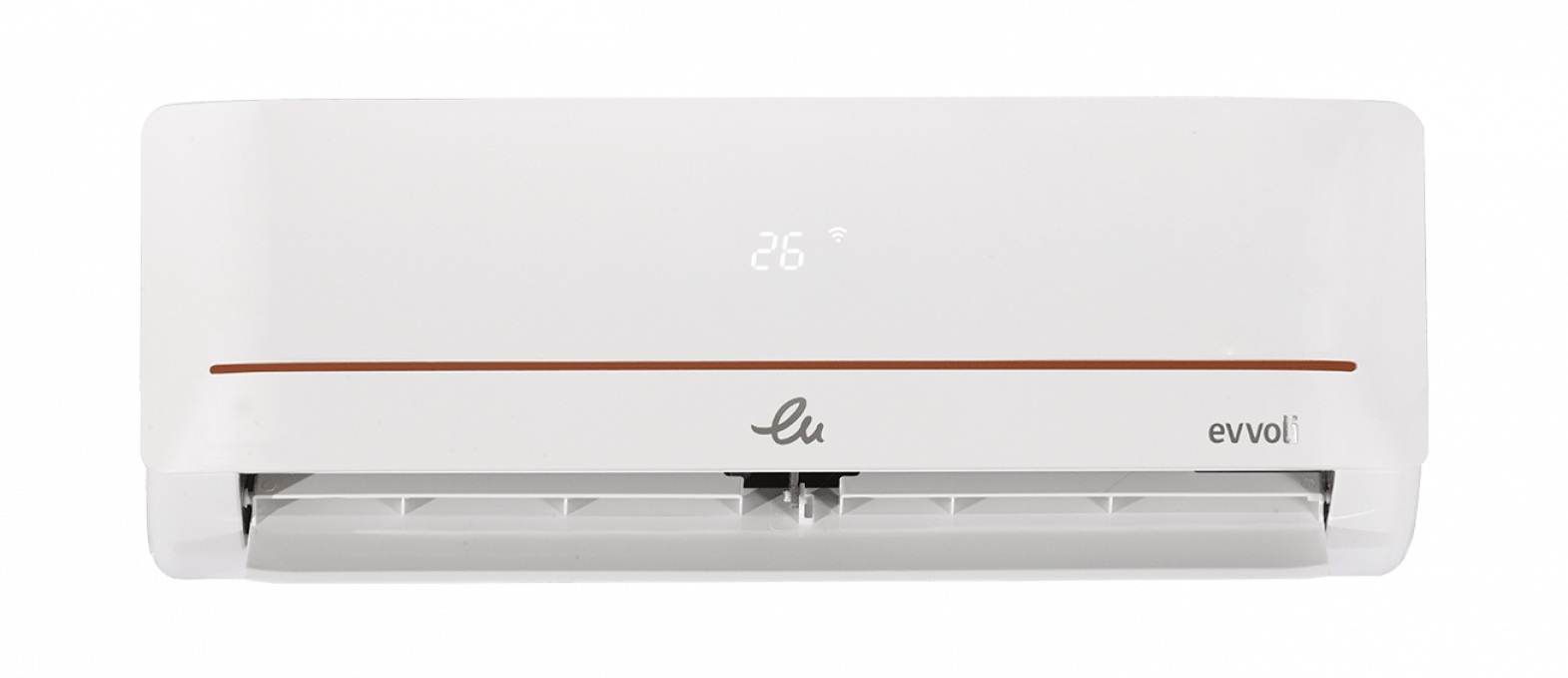

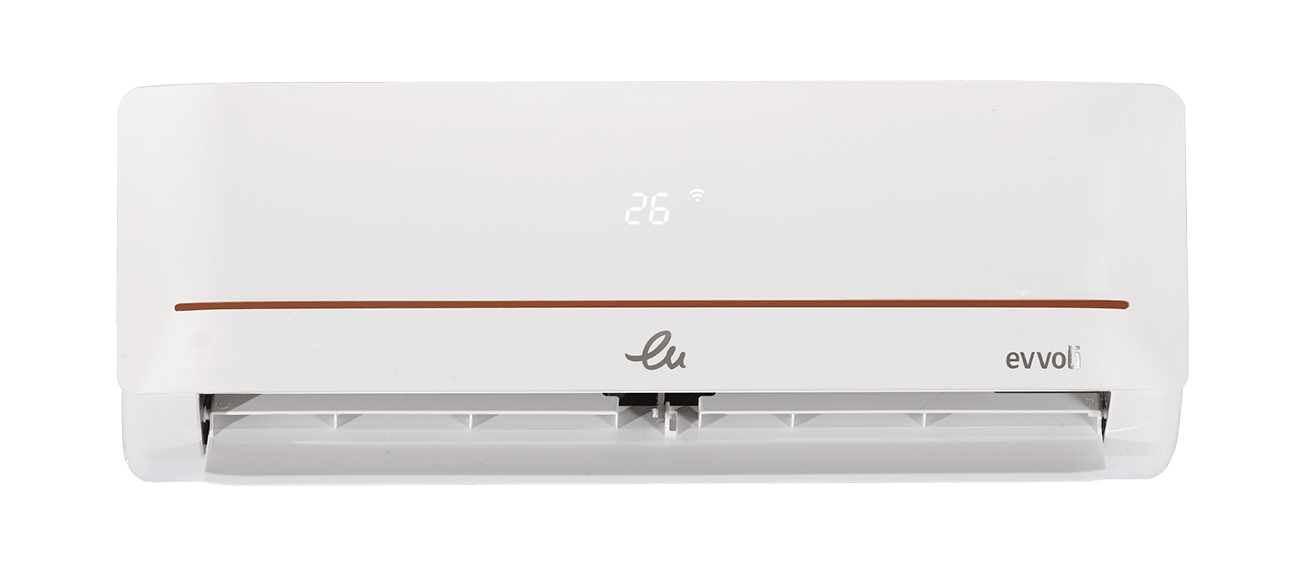

| Indoor Unit | ||
| Dimension(WxDxH) | mm | 1080x226x335 |
| Packing (WxDxH) | mm | 1155x315x415 |
| Net Weight | Kg | 14.5 |
| Gross Weight | Kg | 18.1 |
| OUTDOOR UNIT | ||
| Outdoor Fan Motor | ||
| Model | YKT-75-6-200L-8 | |
| Speed | r/min | 860 |
| Outdoor Coil | ||
| Number Of Rows | 3 | |
| Tube pitch(a)x row pitch(b) | mm | 21×13.37 |
| Fin Spacing | mm | 1.4 |
| Fin type (code) | UnHydrophilic Aluminium | |
| Tube outside dia.and type | mm | Ф7,innergroove tube |
| Coil length x height x width | mm | 780x651x40.11 |
| Number Of Circuits | 6 | |
| Outdoor Noise Level | dB(A) | 58 |
| Outdoor Unit | ||
| Dimension(WxDxH) | mm | 845x363x702 |
| Packing (WxDxH) | mm | 965x395x765 |
| Net Weight | Kg | 47.2 |
| Gross Weight | Kg | 50.3 |
